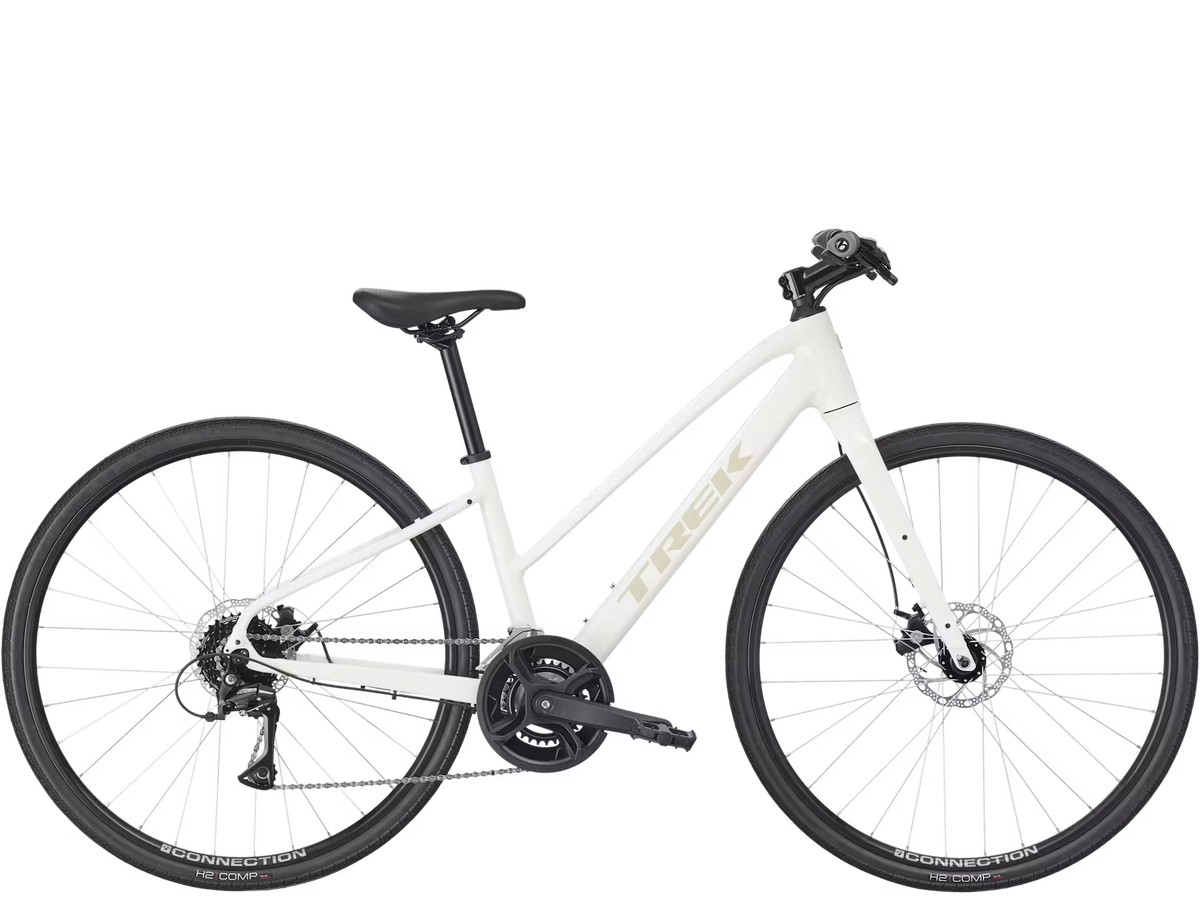

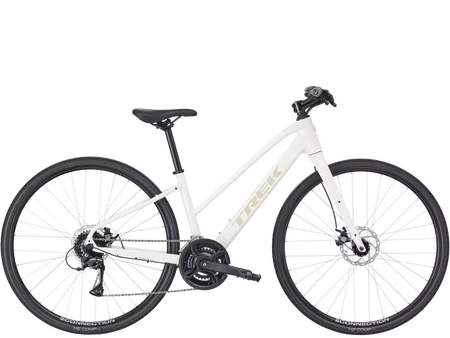

Trek FX 1 Mid-step 2027

Description

FX 1 Midstep is a versatile, stylish hybrid bike that is easy to get on and just as easy to ride. The lightweight frame and Shimano 8-speed drivetrain offer a wide, easy-to-use gear range, while the mechanical disc brakes provide reliable stopping power. Rack mounts and accessories make it easy to adapt the bike to your plans for the day.



We reserve the right to change product information on the website at any time without notice, including details of equipment, specifications, models, colours, materials and prices. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bicycle and frame weights refer to painted pre-production products at the time of printing. The weight of the finished product may vary.

Technical Details

Frame

Alluminio Alpha Gold, passaggio cavi interno, compatibilità attacchi portapacchi e parafanghi, disco post-mount, attacco cavalletto. 135x5mm QR

Fork

FX steel, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR

Front hub

Formula DC-20, lega, 6 bulloni, 100x5mm

Rear hub

Formula DC-22, lega, 6 bulloni, ruota libera Shimano 8/9/10, 135x5mm

Front tyre

Bontrager H2 Comp, tallone rigido, 30tpi, 700x35mm

Rear tyre

Bontrager H2 Comp, tallone rigido, 30tpi, 700x35mm

Front wheel

Bontrager Connection, doppia camera, 32 fori, larghezza 20mm, valvola Schrader

Rear wheel

Bontrager Connection, doppia camera, 32 fori, larghezza 20mm, valvola Schrader

Shifters

Shimano EF500, 8 velocità

Rear derailleur

Shimano Acera M3020-8, pignone massimo 40 denti

Front derailleur

Shimano Tourney TY606, morsetto 31,8/34,9mm, oscillazione superiore, trazione doppia

Cassette

Shimano 8 velocità, 12-32T

Chain

KMC Z8.3

Crankset

Lega forgiata

Chainrings

46/30

Crank arms

170mm

Bottom bracket

Cartuccia sigillata, 68mm

Pedals

Piattaforma Wellgo in nylon

Saddle

Bontrager Sport da donna

Seatpost

Lega Bontrager, 27,2mm, offset 12mm, lunghezza 330mm / 400mm

Handlebar

Bontrager Riser, acciaio, 25,4mm, rise 30mm, larghezza 600mm

Stem

Bontrager Lega, morsetto da 25,4mm, 10 gradi, lunghezza 90mm /110mm

Grips

Trek Ergonomic Comp, lock-on

Brakes

Tektro MD-U310 Disco meccanico

Front brake rotor

160mm

Rear brake rotor

160mm

Weight

M - 12.85kg

Weight limit

Questo modello ha un limite di peso massimo complessivo (peso combinato di bicicletta, ciclista e carico) di 136kg.

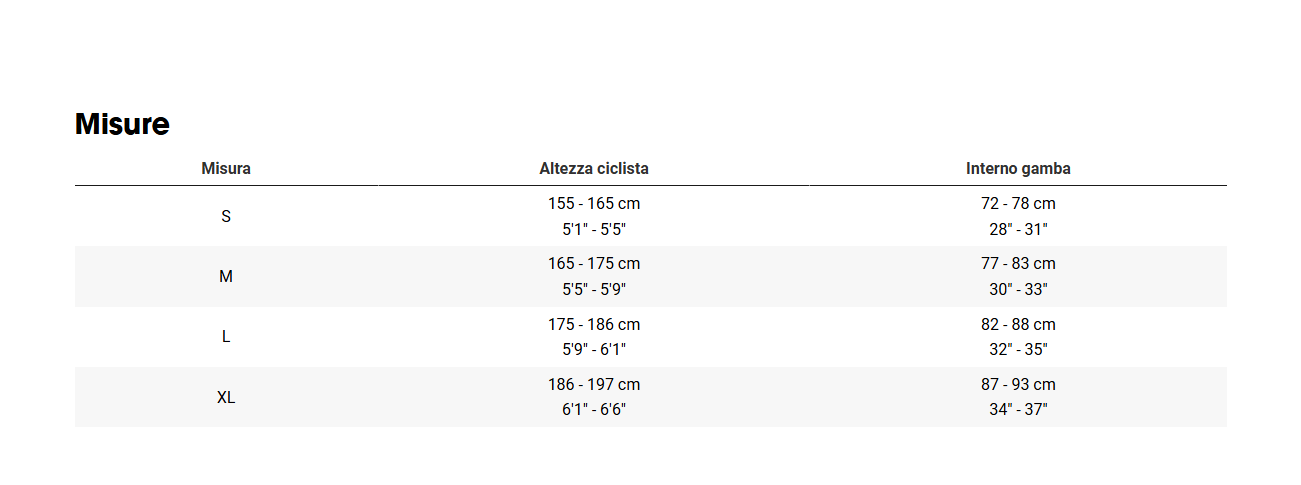

Size Chart

×

×
